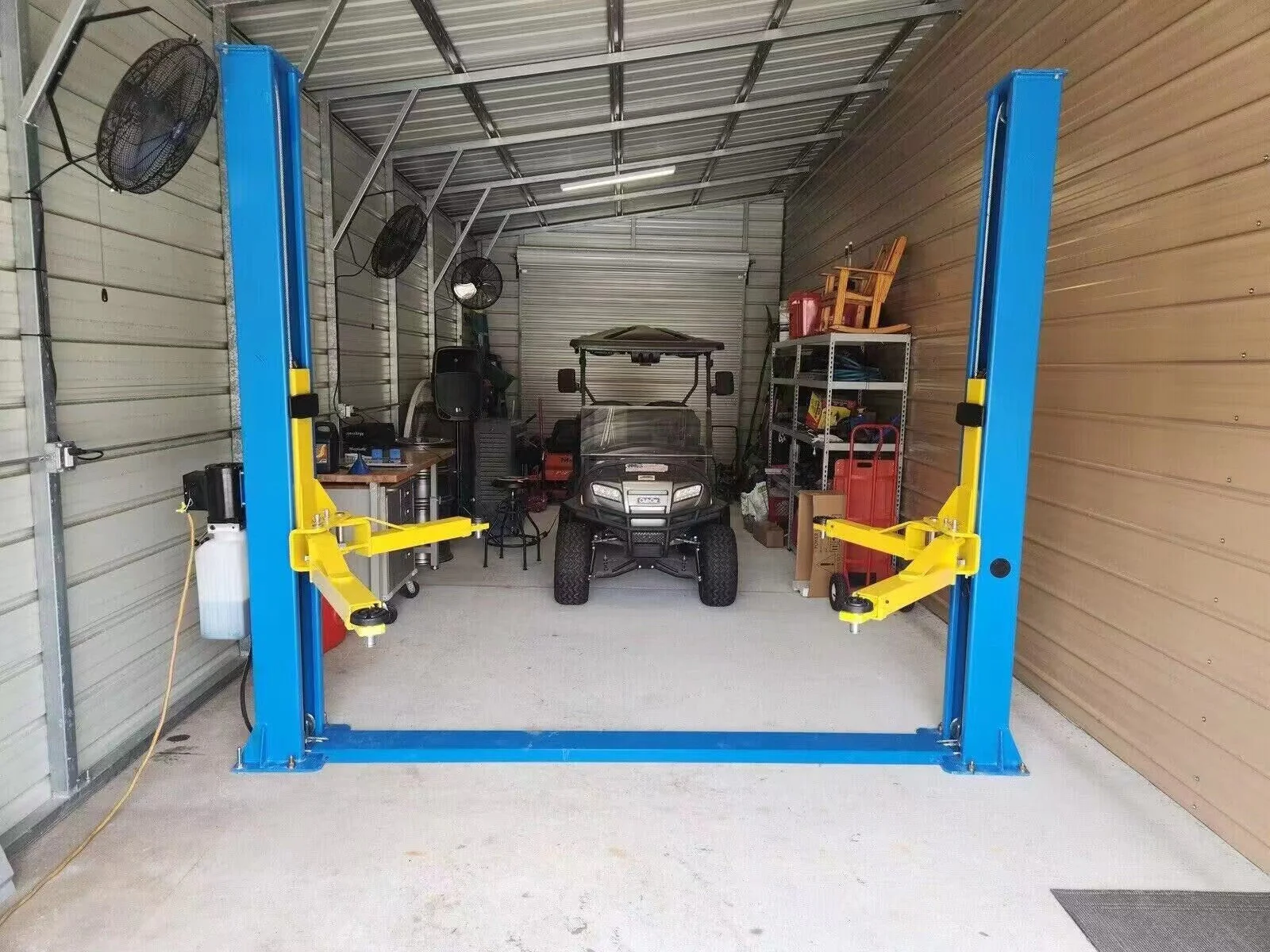

This two-post automotive lift offers a ten-thousand pound rated capacity suitable for light and medium duty vehicles. Heavy-gauge steel columns and crossbeam deliver structural rigidity and long-term serviceability. Dual hydraulic chain-drive cylinders provide synchronized lifting and controlled descent. The hydraulic power unit operates on 220VAC/60Hz/1PH with a 2.2 kW motor for consistent performance. An optional 110VAC/60Hz single-phase power unit is available as a paid add-on for alternate power environments. Manual safety release is accessible from both sides to simplify lowering and emergency operations. Screw-on lift pads and extension adaptors enable secure contact points for varied vehicle lift points. Rubber pad door-opening protection reduces contact damage to vehicle bodies during positioning. Arm geometry provides a front reach range of 29.5 to 46 inches to accommodate varying chassis widths. Rear arm reach extends from 29.5 to 49.2 inches to support longer wheelbases and wider vehicles. Maximum lifting height is 70.8 inches, providing ample access for undercarriage inspection and repairs. Minimum lift height of 3.9 inches facilitates tire and underbody work at low clearance. Overall height and footprint measurements guide garage layout and door clearance planning. Drive-through clearance of 98.4 inches accommodates vehicles with elevated ride height in wide-bay setups. The unit is CE approved and tested to 115% dynamic and 150% static loading capacity per the manufacturer's conformity statement. Installers must verify concrete slab thickness of at least 5.9 inches and 3000 PSI compressive strength prior to anchoring. Correct anchor placement on a level slab and specified torque values are critical to maintain alignment and safety. Regular inspection of chains, cylinder seals, and anchor hardware reduces service interruptions and extends component life. Maintenance intervals should include hydraulic fluid checks, fastener torque verification, and pad condition assessment. The base plate design simplifies floor mounting and helps distribute loads into the slab. A clear maintenance access path around the columns speeds routine service and safety checks. Freight delivery planning is required; this product ships freight-only within the contiguous United States. Buyers are responsible for unloading from the delivery truck and should plan forklift or dock services when necessary. Residential delivery and re-delivery may incur additional carrier charges. Operators must follow vehicle-specific lift point charts and balance load distribution across arms. Per-arm load limits must be observed to prevent overstressing individual lift arms during asymmetric lifts. The supply package includes standard pads, extension adapters (+100 mm), and mounting hardware required for assembly and basic operation. Technical documentation and service guidance are provided with the unit and should be retained for future reference. Proper training on safe lift operation and periodic shop procedure certification will improve workshop safety and uptime.
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Material	High-strength welded steel construction, powder-coated finish
Lifting capacity	10,000 lb (4,500 kg)
Max lifting height	70.8 in (1800 mm)
Minimum height	3.9 in (100 mm)
Overall height	110.9 in (2818 mm)
Overall width (footprint)	140.4 in (3565 mm)
Drive-thru clearance	98.4 in (2500 mm)
Arm reach (front)	29.5–46 in (750–1170 mm), 2-stage arms
Arm reach (rear)	29.5–49.2 in (900–1480 mm), 2-stage arms
Motor & power	220VAC/60Hz/1PH, 2.2 kW; 110VAC/60Hz optional add-on (additional cost)



Understanding Two-Post Lift Weight Capacities

Two-post lifts are essential in automotive shops, but selecting the appropriate lift with the correct weight capacity is crucial for safety and equipment longevity.

Typical Weight Capacities

Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable.

Calculating Required Lift Capacity

To determine the appropriate lift capacity:

1. Calculate Rear Axle Weight: Multiply the vehicle's total weight by the distance from the center of gravity to the front axle, then divide by the wheelbase.

2. Calculate Front Axle Weight: Subtract the rear axle weight from the total vehicle weight.

3. Determine Arm Capacity: Divide each axle's weight by two to find the load per arm.

For example, if a vehicle weighs 9,000 pounds with a 3,000-pound front axle and a 6,000-pound rear axle, each arm would need to support 3,000 pounds. In this case, a 10,000-pound lift with 2,500-pound arms would be insufficient.Opting for a 12,000-pound lift would be safer.

Importance of Choosing a Lift with Adequate Capacity

Selecting a lift with a capacity that exceeds the vehicle's weight requirements is advisable. This accounts for variables like vehicle modifications, additional equipment, or unexpected weight distributions. Many manufacturers recommend not exceeding 75% of a lift's rated capacity to maintain safety margins.

Safe Operating Practices

• Adhere to Weight Limits: Never exceed the lift's total or per-arm weight capacities.

• Proper Vehicle Positioning: Ensure the vehicle is centered and balanced on the lift to distribute weight evenly.

• Regular Maintenance: Follow the manufacturer's maintenance schedule and conduct routine inspections to identify potential issues.

By understanding and respecting the weight capacities and operational guidelines of two-post lifts, automotive shops can ensure safer working conditions and prolong the lifespan of their equipment.
