Katool KT-AS110D 11,000 lb Two-Post Asymmetrical Car Lift
Heavy-gauge welded steel columns and crossbar provide structural rigidity for repeated professional service. High-flow direct-drive hydraulic cylinders deliver smooth, controlled ascent to a maximum lift height of 70.75 inches. Asymmetrical arm design improves vehicle access and increases clearance for bumper and exhaust work. Single point lock release simplifies height adjustment while the overhead safety shutoff bar prevents lift-over travel. Adjustable extended support adapters extend from 3.94 to 6.00 inches to accommodate varied pickup and car jacking points. Rubber pad door opening protection preserves vehicle finishes during entry and exit operations. Rated for 11,000 pounds and CE approved with dynamic and static load testing, it suits busy repair shops and heavy-duty servicing. Power options include 220VAC/60Hz/1PH standard with 110VAC/60Hz/1PH available to match shop electrical supply. Freight delivery requires a suitable unloading plan; forklift or dock services are recommended since the unit ships via freight. Comprehensive maintenance access and a robust hydraulic system reduce downtime and simplify routine inspections.
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 11,000 lbs Lifting Capacity: Handles heavy-duty vehicles with ease.
- CE Approved and Certified: Meets 115% dynamic and 150% static loading capacity standards.
- Single Point Lock Release: Ensures secure and efficient lifting operations.

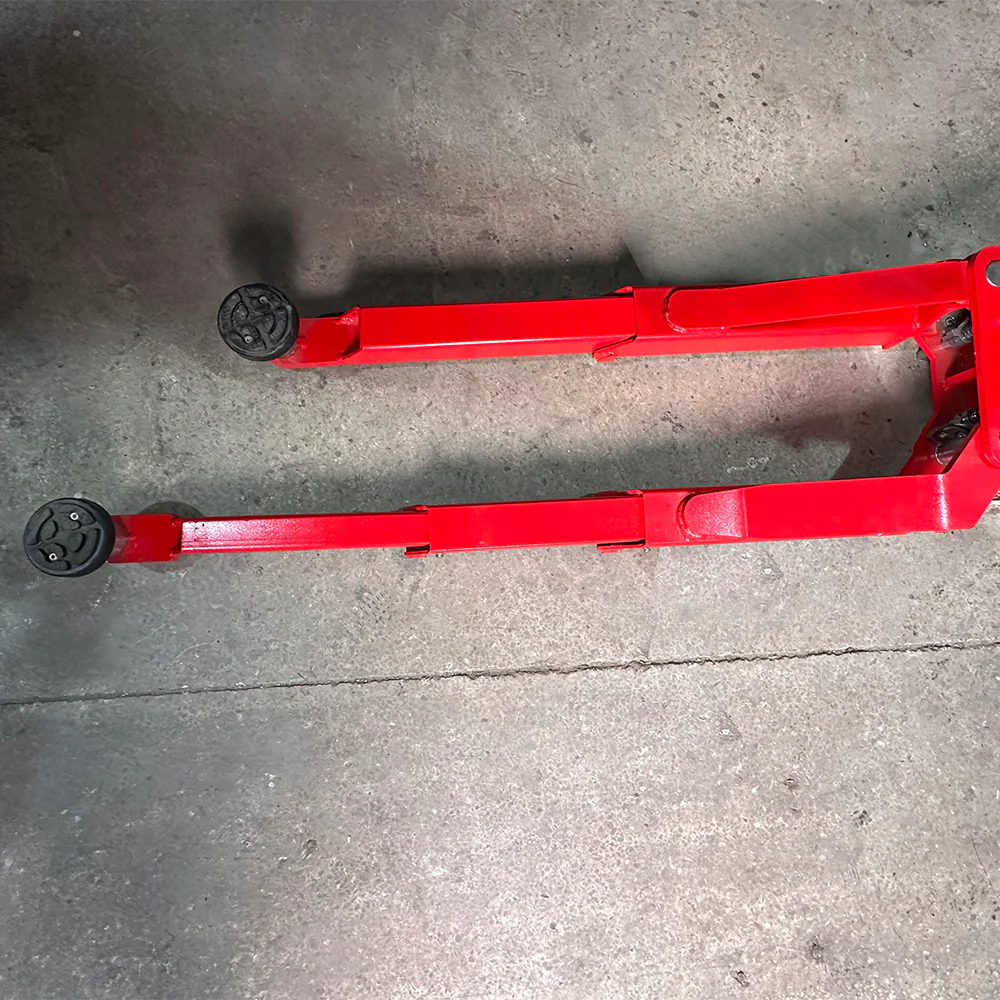

- Asymmetric Arms: Provides enhanced versatility for various vehicle sizes.
- Direct Drive Cylinders: Offers smooth and efficient lifting performance.
- Rubber Pad Door Opening Protection: Protects your vehicle during operations.
- Adjustable Extended Support Adaptor Sets: Ranges from 3.94 inches to 6 inches for compatibility with different vehicles.
- Overhead Safety Shutoff Bar: Ensures safety during lifting operations.
- Feet-Protection Safety Guardrails: Includes a toolbox for added convenience.
- High-Quality Hydraulic System: Available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.
Specifications
| Lifting Capacity | 11000 lbs. (4990KG ) |
| Max. Lifting Height | 70.75" / 1800mm |
| Min. Height | 3.74" / 95mm |
| Height Overall | 141.25" / 3587mm |
| Width Overall | 134.65" / 3420mm |
| Outside Columns | 120.4" / 3058mm |
| Inside Columns | 109.37" / 2778mm |
| Drive Thru Clearance | 99.61" / 2530mm |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 1323lbs / 600KG |
Shipping Coverage
- Freight shipping only within the lower 48 states.
- Fulfillment times are 6-10 business days.
- Free shipping applies to: Tire Changers, Tire Balancers, Shop Tool Equipment, and Scissor Lifts → delivered to commercial addresses or the nearest carrier terminal.
- Two-Post and Four-Post Lifts: Customer must provide a forklift for unloading. Please make sure to select the correct shipped or pick up option BEFORE ADDING THE ITEM TO YOUR CART. If no forklift is available, we can arrange terminal delivery for pick-up instead.
Additional Services & Fees
- Residential Delivery: $100
- Liftgate Service: $100 (not available for two post, four posts, and select scissor lifts; contact us to confirm before ordering)
Customer Responsibilities
- Customers are responsible for unloading freight from the truck.
- A forklift or unloading dock service is strongly recommended.
- Customers are responsible for any re-delivery fees if the carrier cannot complete delivery.
- Do not sign for damaged or incomplete shipments. Contact Customer Service immediately if items are missing or damaged.
Warranty
Katool provides a 1-year limited warranty on all parts and product defects. Additionally, vehicle lifts include a 3-year warranty on structural components. Optional 2-year extended warranty plans are also available for purchase.
Warranty Includes:
- Cylinders, power units, motors, displays, and electronics.
- Structural components for vehicle lifts.
Warranty Conditions:
- Claims must be within the warranty period and are non-transferable.
- Replacement parts are provided free of charge, including shipping.
- Labor costs are not included in the warranty.
- Disassembly of equipment prior to warranty approval is not permitted.
All warranty claims are subject to review by the warranty/service department. Supporting documentation, such as photos or videos of defects, may be required for approval.
Resources
For detailed installation instructions, safety guidelines, and operating procedures, please refer to the Katool KT-AS110D User Manual. Click the link below to download:
